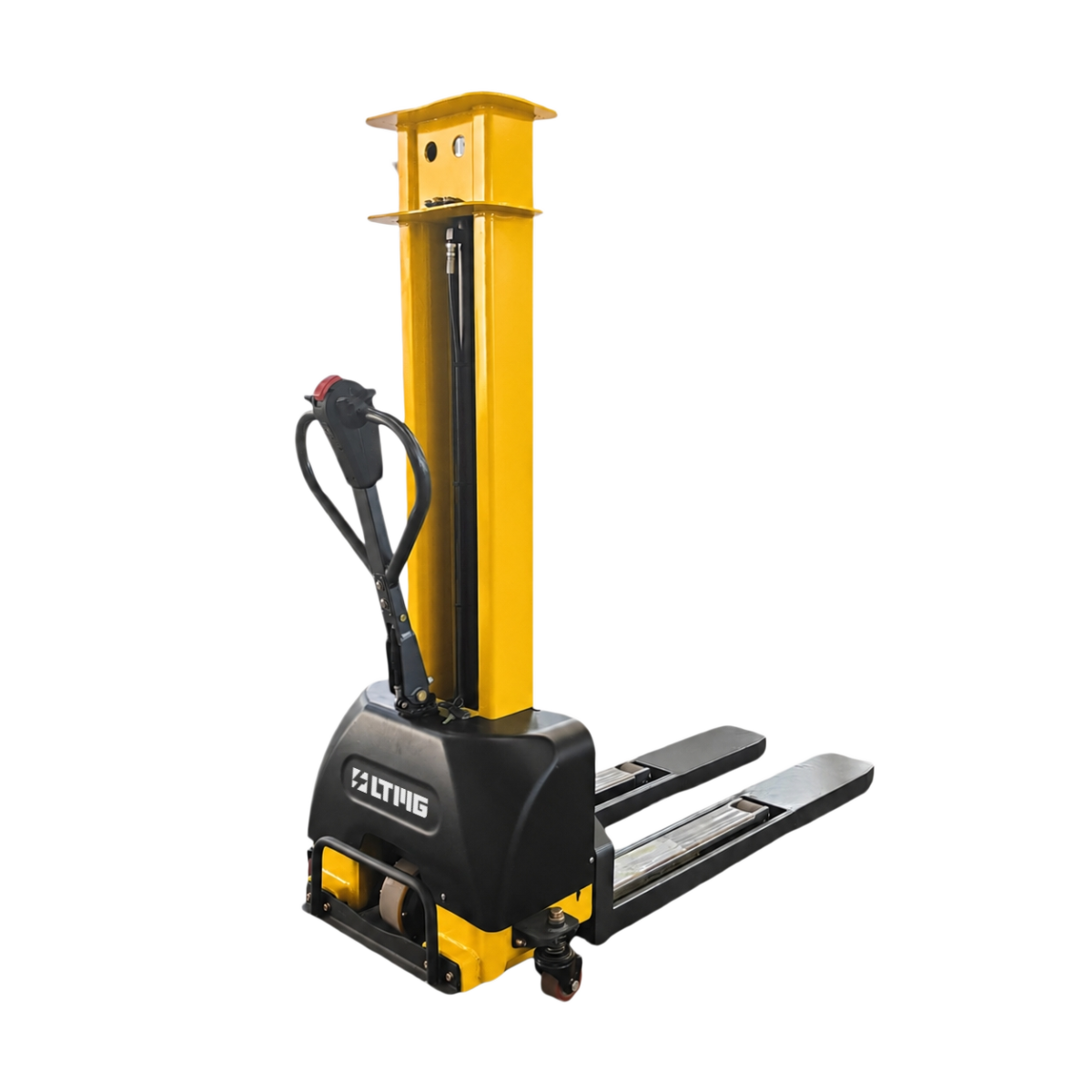

Electric Pallet Stacker

ERB15

Name: ERB15 仓储车-ERB15
Brand: LTMG

1500 kgRated Capacity

570 kgOverall Weight

2500 mmLift Height

Request an inquiry

Key Features

The four-point support and extended handle design provide a wide operational view and maintain a safe distance from the vehicle during walk-behind operation.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号ERB15

Model DesignationERB15 —

Power TypeElectric —

Operation TypePedestrian —

Rated Capacity1500 kg

Load Center600 mm

Wheel Base1190 mm

Overall Weight570 kg

Tire TypePU —

Front TyresØ 210 × 70 —

Rear TyresØ 80 × 70 —

Additional WheelsØ 115 × 55 —

Wheel Number (Front/Rear)1x + 1 / 4 —

Wheel Tread (Front)565 mm

Wheel Tread (Rear)510 mm

Mast Lowered Height1745 mm

Lift Height2500 mm

Mast Extended Height2995 mm

Lowered Height (Forks)90 mm

Overall Length1810 mm

Overall Width820 mm

Fork Size60 / 170 / 1150 mm

Fork Spread680 mm

Wheelbase Center Min. Ground30 mm

Min. Right Angle Aisle Width2210¹ mm

Min. Right Angle Stacking Length2180² mm

Turning Radius1385 mm

Max. Travel Speed (Full/No load)4.0 / 4.5 km/h

Max. Lifting Speed (Full/No load)85 / 135 mm/s

Lowering Speed (Full/No load)95 / 95 mm/s

Max. Gradeability3 / 10 %

Service BrakeElectronic —

Drive Motor Rating (S2 60min)0.75 kW

Lift Motor Rating (S3 15%)2.2 kW

Battery24 / 85 V/Ah or kWh

Battery Weight/ kg

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
