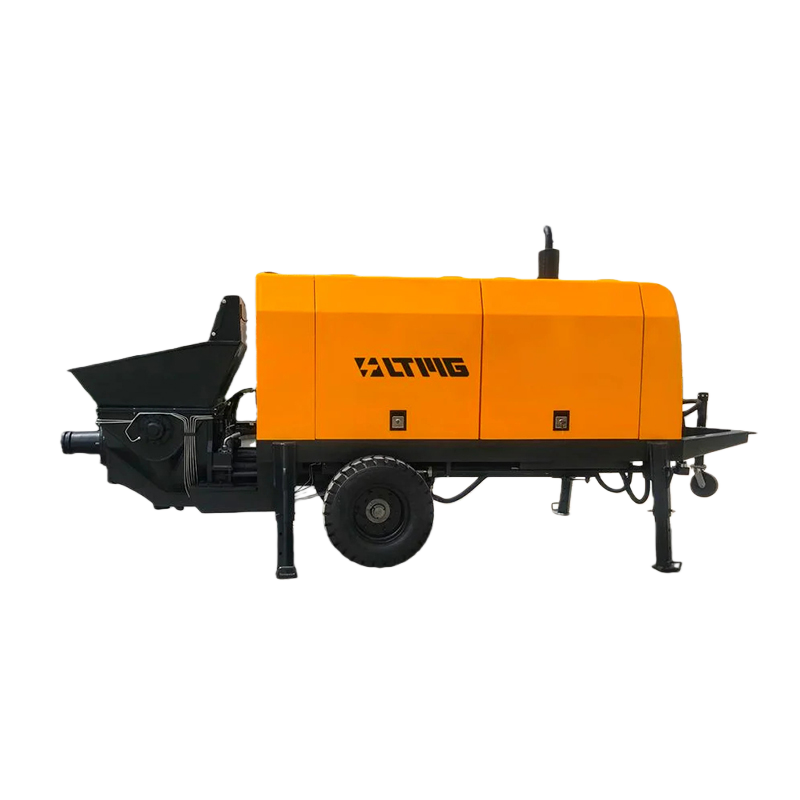

Concrete Pump
HBT50-13-72
48/29 m3/hMaximum theoretical concrete output (L./H.)
13/7 MPaMaximum concrete pumping pressure (H. /L.)
12.5 L/hRated fuel consumption
Key Features
Automatically adjusts the diesel engine speed to ensure smooth operation while improving fuel efficiency.
Technical data
型号HBT50-13-72
Maximum theoretical concrete output (L./H.)48/29 m3/h
Maximum concrete pumping pressure (H. /L.)13/7 MPa
Maximum delivering distance (vertical / horizontal)180/550 m
Concrete valve typeS Valve /
Concrete cylinder diameter × stroke lengthФ180×1000 mm
Outlet inner diameterФ125 mm
Delivering pipe inner diameterФ125 mm
Maximum aggregate diameterPebbles : 50
Gravel : 40 mm
Hopper capacity × hopper height500×1100 L×mm
Lubrication systemAutomatic greaser /
High-low pressure conversionYes /
Remote controlWireless /
Diesel engineR4105ZD2 /
Rated power72 KW
Rated speed1800 r/min
Rated fuel consumption12.5 L/h
Hydraulic systemOpen loop /
Hydraulic pump displacement112 mL/r
Pumping system pressure32 MPa
Stirring system pressure12 MPa
Hydraulic tank capacity320 L
Length × width × height4850×1670×1700 mm
Main weight3360 Kg
Total weight4500 Kg
