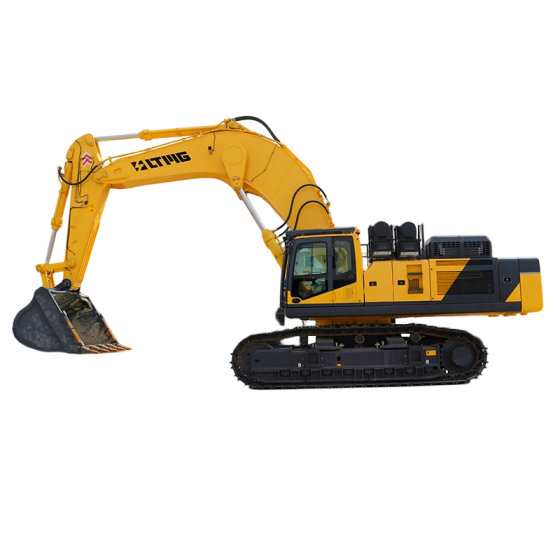

Diesel Tracked Excavator
LTE1000
98 TTotal Weight
574/2000 kW/r/minRated Power
6.5-8 m³Bucket Capacity
Key Features
98T platform with a 574kW Scania engine built for relentless high-intensity mining and overburden stripping around the clock
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLTE1000
Total Weight98 T
Engine ModelScania DC16 /
Rated Power574/2000 kW/r/min
Bucket Capacity6.5-8 m³
System / Working Pressure34.3/37 MPa
Swing Speed6.5 r/min
Traveling / Walking Speed3.53/2.4 km/h
Climbing Ability35 °
Max. Excavation Height12670 mm
Max. Unloading Height8345 mm
Max. Excavation Depth6956 mm
Max. Digging Distance12560 mm
Min. Turning Radius5612 mm
Overall Length13870 mm
Overall Width4451 mm
Min. Ground Clearance940 mm
Boom Length7250 mm
Arm Length2930 mm
Overall Height (Boom Top)5347 mm
Overall Height (Cab Top)3920 mm
Track Length6445 mm
Track Width4160/3590 mm
Track Shoe Width650 mm
Track Gauge3510/2940 mm
Track Ground Contact Length5200 mm
Turntable Width3482 mm
Rear Swing Radius4711 mm
Rear End Distance from Swing Center4271 mm
Counterweight Ground Clearance1728 mm
Counterweight Height3750 mm
Hydraulic Tank Capacity1090 L
Hydraulic Pump ModelK7V280 /
Max Flow Rate550*2 L/min
Traction Force714 kN
Ground Pressure131 kPa
Arm Digging Force437 kN
Bucket Digging Force514 kN
Max. Vertical Digging Depth4860 mm
Digging Reach at 2.5m Level6805 mm
Max Digging Reach at Ground Level12180 mm
Max Height at Min Swing Radius10686 mm
Ground Contact Length (Transport)8905 mm
Track Grouser Thickness50 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
