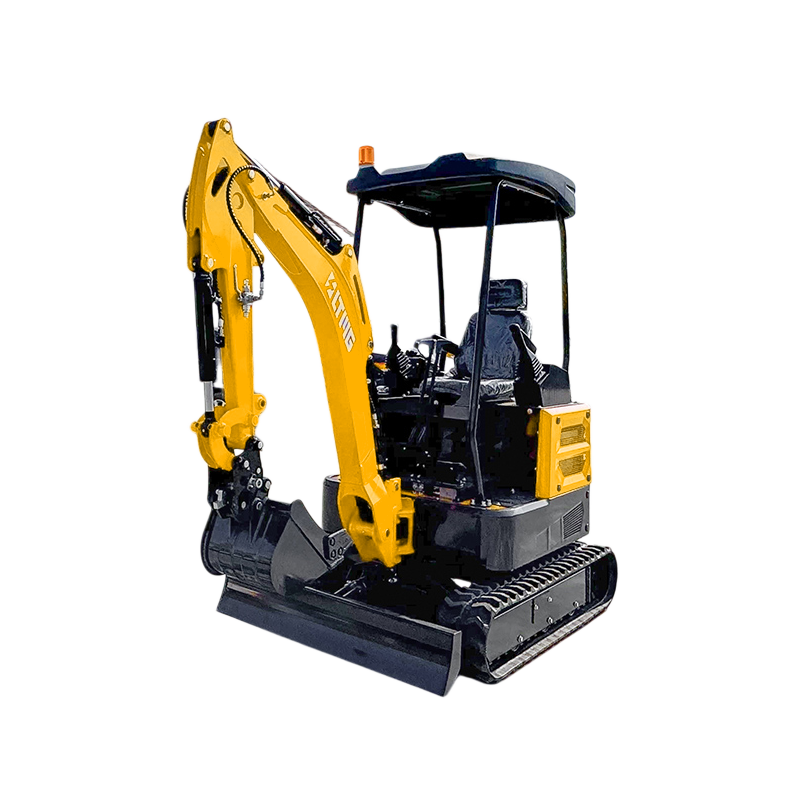

Diesel Tracked Excavator
LTE20
1850 kgOperating Weight
22 / 30hp kWRated Power
0.045 m³Bucket Capacity
Key Features
Equipped with global-source premium components and renowned brand reducers for high operational reliability.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLTE20
Operating Weight1850 kg
Engine ModelYanmar 380 /
Rated Power22 / 30hp kW
Bucket Capacity0.045 m³
System / Working Pressure20 MPa
Swing Speed10 rpm
Traveling / Walking Speed2.8 km/h
Climbing Ability35 °
Max. Excavation Height2950 mm
Max. Unloading Height2230 mm
Max. Excavation Depth2250 mm
Max. Digging Distance2500 mm
Min. Turning Radius1190 mm
Overall Length2300 mm
Overall Width1150 mm
Overall Height2150 mm
Min. Ground Clearance385 mm
Bucket Width400 mm
Max. Digging Force15.2 kN
Ground Pressure30 kPa
Track Ground Length1500 mm
Track Width200 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
