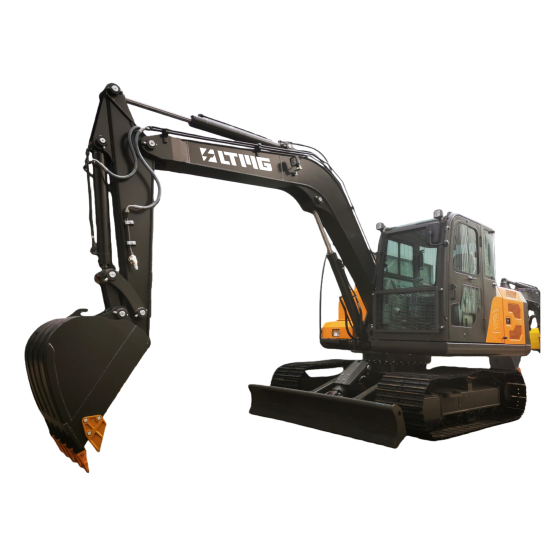

Diesel Tracked Excavator
LTE90
9000 kgOperating Weight
53kW/2200rpm kWRated Power
0.4 m³Bucket Capacity
Key Features
Equipped with a powerful Cummins engine and designed for demanding operations with high-grade, wear-resistant steel plates.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLTE90
Operating Weight9000 kg
Engine ModelCummins QSF2.8 /
Rated Power53kW/2200rpm kW
Bucket Capacity0.4 m³
Swing Speed0-12 rpm
Traveling / Walking Speed2.8 km/h
Climbing Ability70(35°) °
Max. Excavation Height7050 mm
Max. Unloading Height5188 mm
Max. Excavation Depth4015 mm
Max. Digging Distance6540 mm
Min. Turning Radius2140 mm
Tail Turning Radius1813 mm
Overall Length6410 mm
Overall Width2278 mm
Overall Height2630 mm
Min. Ground Clearance375 mm
Max. Digging Force58 Kn
Max. Vertical Digging Depth3550 mm
Max. Dozer Lifting Height370 mm
Max. Dozer Cutting Depth344 mm
Cabin Height2630 mm
Wheelbase2209 mm
Track Gauge1750 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
