Key Features
Compact Size, lightweight, small turning radius, easy access to the elevator, suitable for floors and container operations, improve the passage and space utilization.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

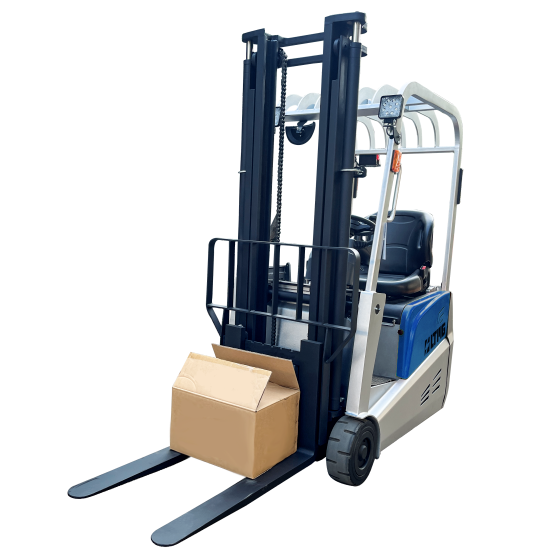

ModelFB10S
Power TypeElectric —
Rated Capacity1000 kg
Load Center500 mm
Lift Height3000 mm
Fork Size920×120×35 mm
Mast Tilt Angle (F/R)2/4 Deg
Turning Radius1425 mm
Ground Clearance60 mm
Front Overhang196 mm
Max. Gradeability6/4 %
Wheel Base1130 mm
Overall Weight2120 kg
Total Length without Fork1610 mm
Overall/Total Width920 mm
Mast Lowered Height2035 mm
Mast Extended Height3918 mm
Overhead Guard Height1930 mm
Max Travel Speed (Full load/No load)5/5.2 km/h
Max Lift/Lifting Speed (Full load/No load)95/135 mm/s
Front TyresSolid Tires —
Rear TyresPU Tires —
Battery Voltage/Capacity (Lead-acid)24/270 V/Ah
Battery Voltage/Capacity (Lithium)24/160 V/Ah
Free Lift Height/ mm
Battery Dimensions/ mm
Drive Motor Power1.5 kW
Lifting Motor Power3 kW
Control TypeFull AC —
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
