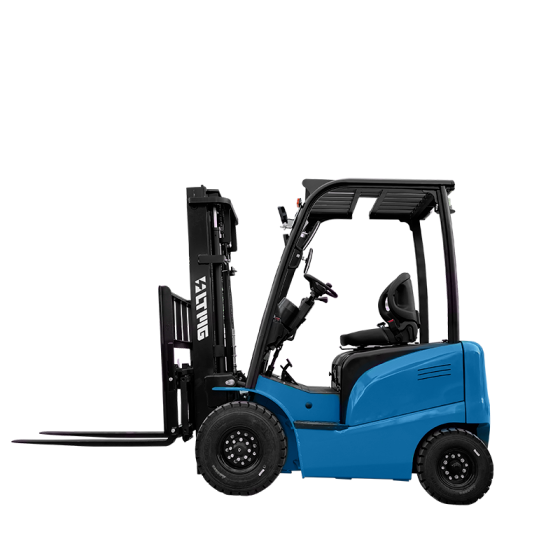

Electric Forklift

FB18

Name: FB18 电动叉车-FB18
Brand: LTMG

1800 kgRated Capacity

500 mmLoad Center

3000 mmLift Height

Request an inquiry

Key Features

Compared with DC motor, the maximum speed of AC motor is higher, which is more compact yet more powerful. With faster start-up response, the forklift can run at full speed over short distances. No need to replace the carbon brush or diverter, thus saving maintenance cost.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FB18

Power TypeBattery —

Rated Capacity1800 kg

Load Center500 mm

Lift Height3000 mm

Fork Size1070×100×32 mm

Mast Tilt Angle (F/R)6/12 Deg

Turning Radius1997 mm

Ground Clearance105 mm

Front Overhang400 mm

Max. Gradeability12 %

Wheelbase1360 mm

Overall Weight3200 kg

Total Length without Fork2035 mm

Overall Width1090 mm

Mast Lowered Height1995 mm

Mast Extended Height4025 mm

Overhead Guard Height2100 mm

Max Travel Speed (Full load)13/15 km/h

Max Lift Speed (Full load)240/450 mm/s

Front Tyres6.50-10-12PR —

Rear Tyres5.00-8-8PR —

Battery48/400 V/Ah

Wheel Number (F/R)2 X / 2 —

Front Tread912 mm

Rear Tread920 mm

Free Lifting Height140 mm

Ground Clearance of Wheel Base Center (Loaded)115 mm

Right Angle Stacking Aisle Width (Pallet 1000×1000mm)3797 mm

Right Angle Stacking Aisle Width (Pallet 1200×1200mm)3997 mm

Lateral Fork Adjustment (Max./Min.)970/200 mm

Lowering Speed<600 mm/s

Battery Weight640 kg

Driving Motor Power (60 min)8 kW

Lifting Motor Power (S3 15%)7.5 kW

Driving Motor Control ModeFull AC —

Lifting Motor Control ModeFull AC —

Service Brake / Parking BrakeHydraulic / Mechanical —

Hydraulic System Working Pressure17.5 MPa

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
