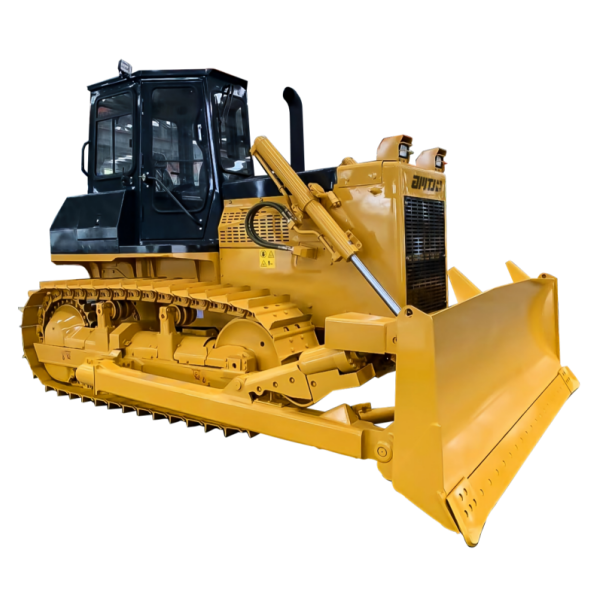

Diesel Crawler Bulldozer
T160G
131 / 1850 kW/rpmEngine Power
16.4 tOverall Weight
4990 × 3440 × 3110 mmOverall Dimensions (L×W×H)
Key Features
Weichai WP10G178E355 engine has sufficient power, is easy to maintain, has the advantages of high combustion efficiency, and meets the national III emission standard.
Technical data
型号T160G
Engine ModelWP10G178E355 / WD10G178E25 /
Engine Power131 / 1850 kW/rpm
Overall Weight16.4 t
Overall Dimensions (L×W×H)4990 × 3440 × 3110 mm
Ground Clearance405 mm
Max. Gradeability30 °
Forward SpeedF1: 0 ~ 3.29 km/h
Reverse SpeedR1: 0 ~ 4.28 km/h
Minimum Fuel Consumption214 g/kW·h
Grounding Length2430 mm
Ground Specific Pressure0.066 MPa
Track Shoe Quantity37 pcs (each side)
Track Shoe Width510 (560, 610) mm
Track Gauge1880 mm
Pitch203.2 mm
Carrier Roller Quantity2 pcs (each side)
Track Roller Quantity6 pcs (each side)
Max. Traction Force144 kN
Blade TypeStraight-tilt Blade /
Blade Size (L×H)3440 × 1150 mm
Blade Capacity4.5 m³
Blade Lift Height1095 mm
Blade Digging Depth540 mm
Max. Inclination Angle of Blade400 mm
Coolant Capacity79 L
Fuel Tank Capacity300 L
Engine Oil Capacity19 L
Recommended products
Diesel Crawler Bulldozer

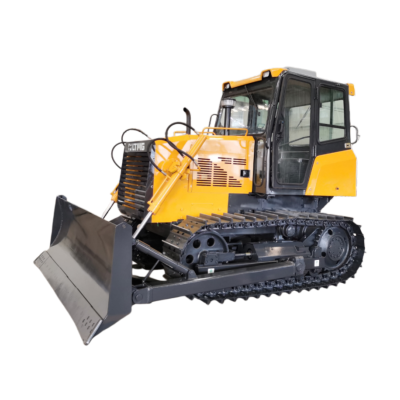

T100
- Operating Weight
- 10000 kg
- Engine Rated Power / Speed
- 81/2300 kW/r/min
- Overall Dimensions (L×W×H)
- 4400×2960×3030 mm
Diesel Crawler Bulldozer
TS100
- Operating Weight
- 10800 kg
- Engine Rated Power / Speed
- 81/2300 kW/r/min
- Overall Dimensions (L×W×H)
- 4400×3250×3030 mm
Diesel Wheeled Bulldozer
TL220
- Overall Dimensions
- 7800×4200×3700 mm
- Operating Weight
- 17000 kg
- Rated Power
- 162 kW
Diesel Crawler Bulldozer

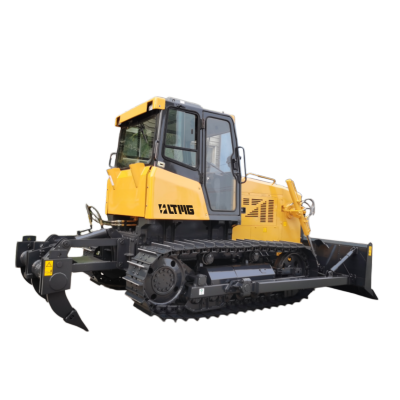

T120
