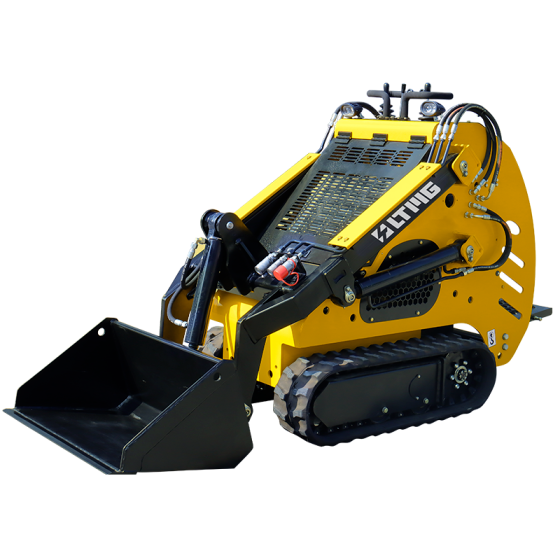

Skid Steer Loader
LTS22
1185 kgOperating Weight
0.12 m³Bucket Capacity
17.2 kWRated Power
Key Features
Multiple forms of foot pedals for safer and more convenient operation.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLTS22
Operating Weight1185 kg
Bucket Capacity0.12 m³
Rated Power17.2 kW
Overall Dimensions2400*830*1174 mm
Bucket Swing Angle70 °
Flow of Main Pump36 L/min
Valve Qty2 /
Rotating Speed3000 rpm
Hydraulic Pressure20 MPa
Max. Lifting Power850 kg
Max. Working Height2178 mm
Max. Pin Height1880 mm
Main Pump Qty2 /
Overall Length (Without Bucket)1900 mm
Overall Width830 mm
Rated Load240 kg
Dumping Height1395 mm
Dumping Distance620 mm
Wheelbase705 mm
Min. Ground Clearance90 mm
Turning Radius1850 mm
EngineBriggs & Stratton /
Travel Speed6 km/h
Bucket Width835 mm
Engine ModelHONDA GX690 /
Opening-Closing Angle14 °
Bucket Unloading Angle36 °
Overall Length (With Bucket)2400 mm
Overall Height1174 mm
Angle of Departure25 °
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
Recommended products
Skid Steer Loader
LT23S
- Operating Weight
- 920 / 930 / 950 kg
- Rated Load
- 560 kg
- Bucket Capacity
- 0.15 m³
Skid Steer Loader
LT23
- Rated Load
- 260 kg
- Bucket Capacity
- 0.15 m³
- Operating Weight
- 890 / 900 / 930 kg

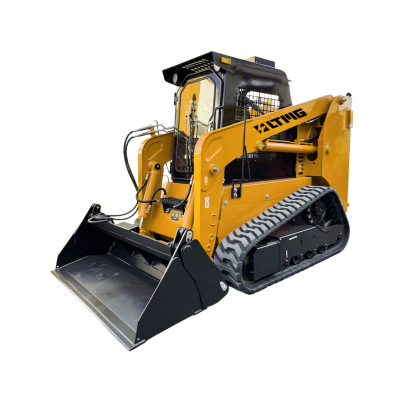

Skid Steer Loader
