Key Features
The imported hydraulic motor delivers stronger and more reliable driving performance.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

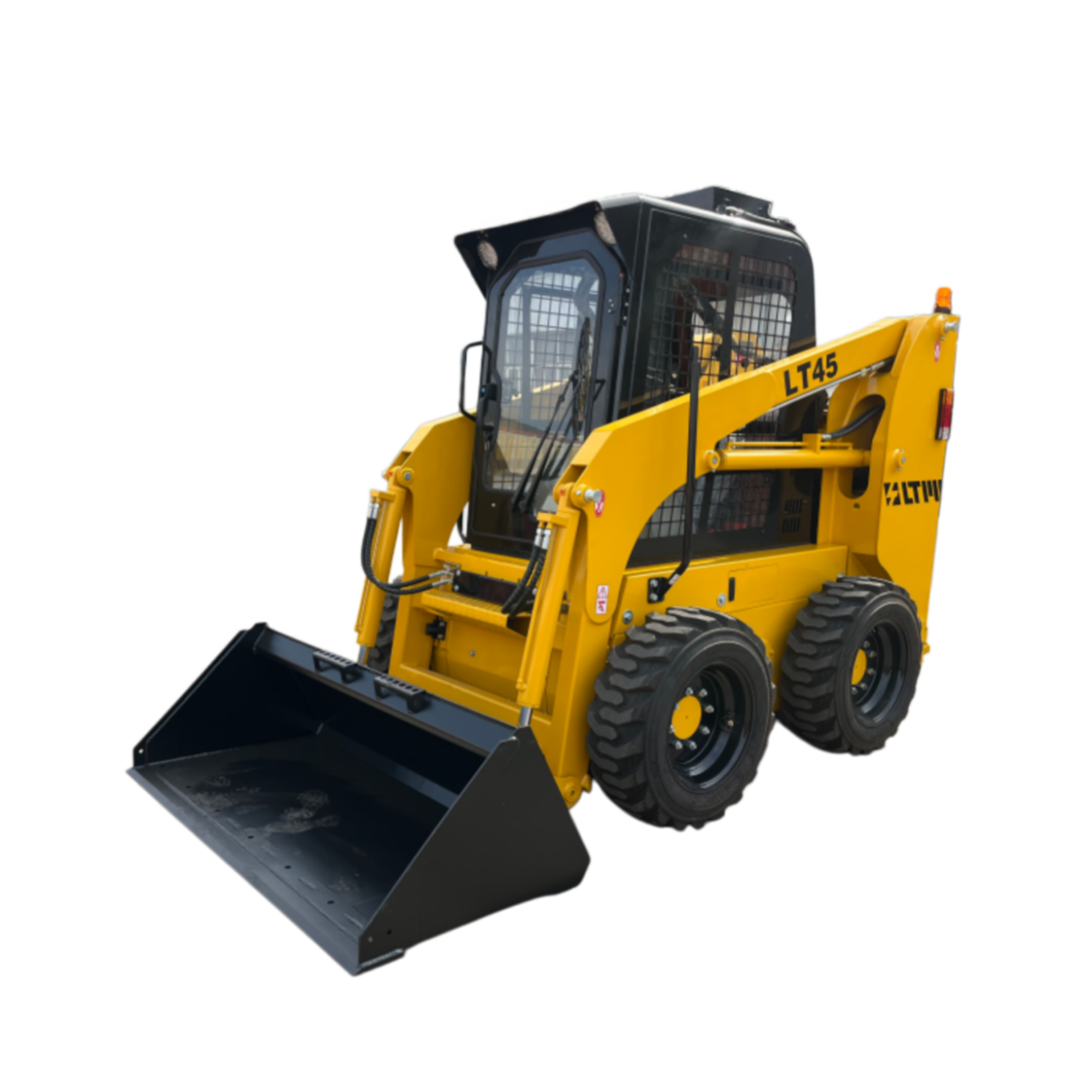

ModelLT45
Operating Weight3000 kg
Rated Load700 kg
Bucket Capacity0.4 m³
Max. Speed12 km/h
Engine BrandXINCHAI /
Engine ModelC490BPG /
Rated Power36.7/2650 kW/rpm
Engine Displacement2.27 L
Overall Operating Height3980 mm
Height to Bucket Hinge Pin3080 mm
Height to Top of Cab2140 mm
Height to Bottom of Level Bucket2913 mm
Overall Length without Bucket2640 mm
Overall Length with Bucket3420 mm
Dumping Angle at Maximum Height40 °
Dumping Height2380 mm
Dumping Reach700 mm
Rollback Angle on Ground30 °
Rollback Angle at Full Height104 °
Wheelbase991 mm
Ground Clearance185 mm
Angle of Departure20 °
Front Turning Radius without Bucket1168 mm
Front Turning Radius1958 mm
Rear Turning Radius1630 mm
Rear Axle to Bumper1108 mm
Tread Width1450 mm
Overall Width1720 mm
Bucket Width1740 mm
Tire Model10-16.5 /
Max. Traction≥25.40 kN
Max. Breakout Force≥18.4 kN
Lifting Time of Boom7 s
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
