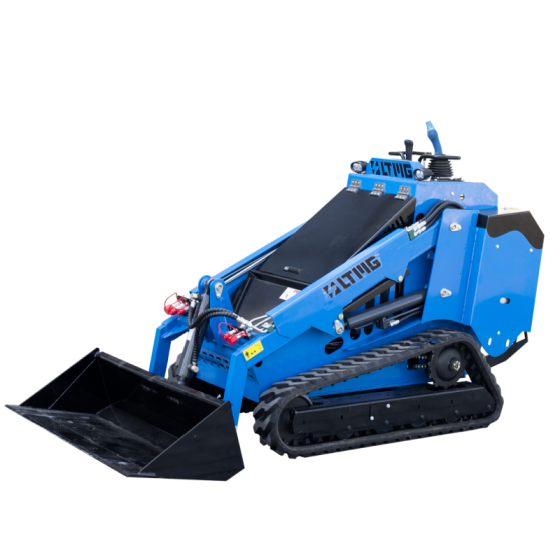

Skid Steer Loader
LTS10EV
1000 kgOperating Weight
300 kgRated Load
0.12 m³Bucket Capacity
Key Features
Adopting core technology of wheelside drive, stronger power, agile action and ultra-low failure rate.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
ModelLTS10EV
Operating Height2450 mm
Operating Weight1000 kg
Rated Load300 kg
Bucket Capacity0.12 m³
Dumping Height1510 mm
Wheelbase850 mm
Overall Length (Without Bucket)1680 mm
Overall Width1030 mm
Min. Ground Clearance150 mm
Travel Speed0-6 km/h
Bucket Width1000 mm
Overall Length (With Bucket)2206 mm
Overall Height1360 mm
Battery200Ah/72V (lithium) /
Track Width180 mm
Height to Bucket Hinge Pin1870 mm
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
