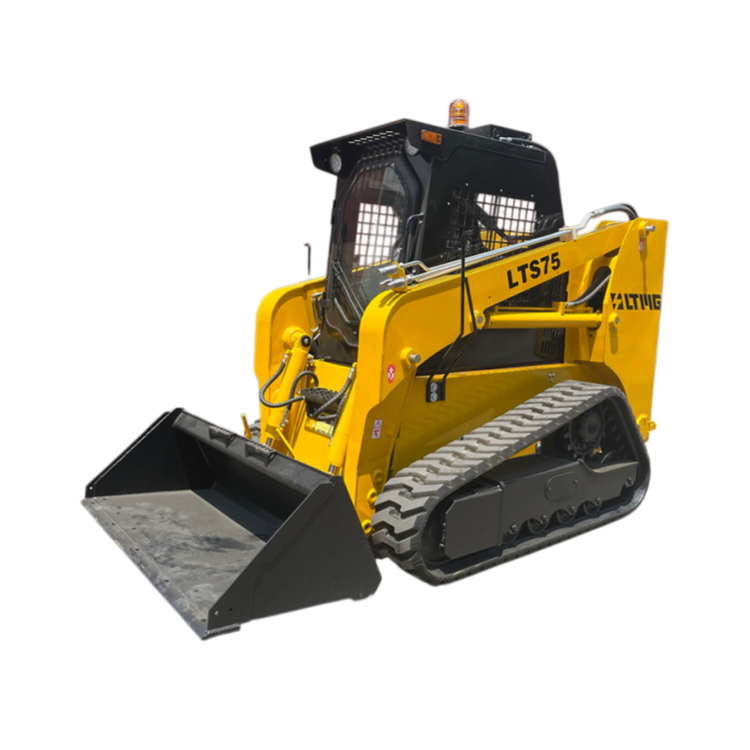

Skid Steer Loader

LTS75

Name: LTS75 滑移装载机-LTS75
Brand: LTMG

4200 kgOperating Weight

1050 kgRated Load

0.5 m³Bucket Capacity

Request an inquiry

Key Features

The patented adjustable maneuvering-distance design accommodates the operating preferences and driving needs of different users.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTS75

Operating Weight4200 kg

Rated Load1050 kg

Bucket Capacity0.5 m³

Max. Speed12/18 km/h

Engine BrandXINCHAI /

Engine ModelA498BZG/T /

Rated Power55/2500 kW/rpm

Engine Displacement3.17 L

Overall Operating Height3480 mm

Height to Bucket Hinge Pin2900 mm

Height to Top of Cab2150 mm

Height to Bottom of Level Bucket2730 mm

Overall Length without Bucket2750 mm

Overall Length with Bucket3500 mm

Dumping Angle at Maximum Height40 °

Dumping Height2230 mm

Dumping Reach715 mm

Rollback Angle on Ground30 °

Rollback Angle at Full Height104 °

Wheelbase1500 mm

Ground Clearance200 mm

Angle of Departure20 °

Front Turning Radius without Bucket1298 mm

Front Turning Radius2010 mm

Rear Turning Radius1714 mm

Rear Axle to Bumper890 mm

Tread Width1462 mm

Overall Width1782 mm

Bucket Width1830 mm

Track Model320 × 86 /

Max. Traction≥28.2 kN

Max. Breakout Force≥20 kN

Lifting Time of Boom7 s

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
