Diesel Forklift

FD100

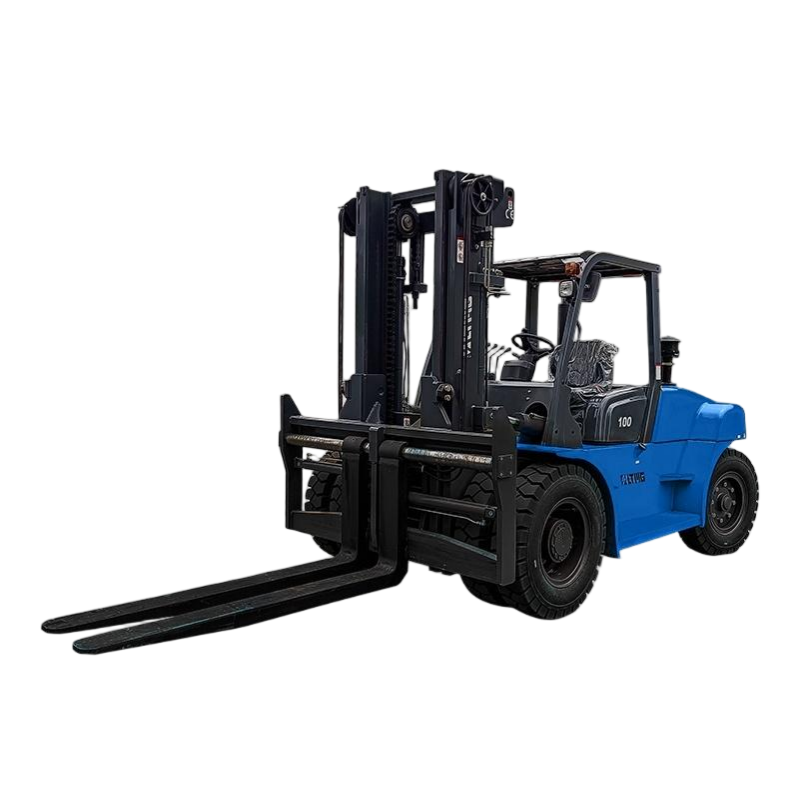

Name: FD100 柴油叉车-FD100
Brand: LTMG

10000 kgRated Capacity

600 mmLoad Center

3000 mmLift Height

Request an inquiry

Key Features

Standard equipped button parking brake, effectively prevent the handbrake from accidentally release.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FD100

Power TypeDiesel —

Rated Capacity10000 kg

Load Center600 mm

Lift Height3000 mm

Fork Size1520×175×85 mm

Mast Tilt Angle (F/R)6°/12° Deg

Turning Radius3970 mm

Ground Clearance230 mm

Front Overhang739 mm

Max. Gradeability20 %

Wheel Base2800 mm

Overall Weight13100 kg

Total Length without Fork4280 mm

Overall/Total Width2170 mm

Mast Lowered Height2830 mm

Mast Extended Height4335 mm

Overhead Guard Height2510 mm

Max Travel Speed (Empty load)30 km/h

Max Lift/Lifting Speed (Full load)270 mm/s

Front Tyres9.00-20-14 PR —

Rear Tyres9.00-20-14 PR —

Battery(12/80) × 2 V/Ah

Engine Model6BG1QC-02 —

Engine Power82.4/2000 kW/rpm

Min. intersecting aisle3590 mm

Engine ManufactureISUZU —

Engine Rated Torque416/1600 N·m/rpm

No. of Cylinder6 —

Bore×Stroke105 × 125 mm

Displacement6494 cc

Fuel Tank Capacity135 L

Transmission TypeHydraulic —

Transmission Stage (FWD/RVS)2/2 —

Operating Pressure for Attachment19 Mpa

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
