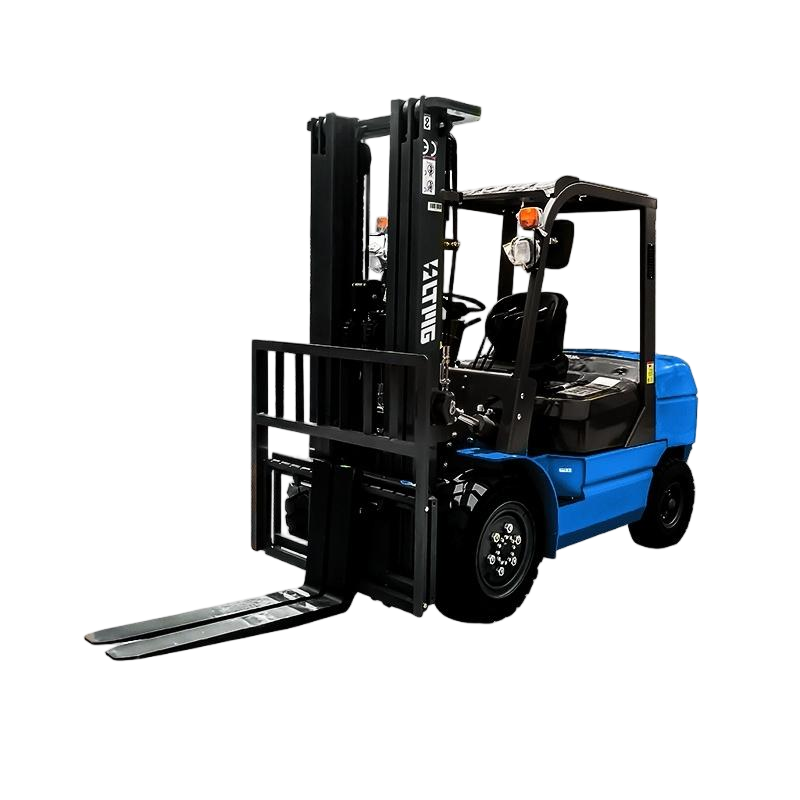

Diesel Forklift

FD40

Name: FD40 柴油叉车-FD40
Brand: LTMG

4000 kgRated Capacity

500 mmLoad Center

3000 mmLift Height

Request an inquiry

Key Features

High independent channel prevents dust and increases intake air for full combustion.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FD40

Power TypeDiesel —

Rated Capacity4000 kg

Load Center500 mm

Lift Height3000 mm

Fork Size1070×125×50 mm

Mast Tilt Angle (F/R)6°/12° Deg

Turning Radius2700 mm

Ground Clearance140 mm

Front Overhang495 mm

Max. Gradeability20 %

Wheel Base1900 mm

Overall Weight5100 kg

Total Length without Fork2890 mm

Overall/Total Width1410 mm

Mast Lowered Height2195 mm

Mast Extended Height4180 mm

Overhead Guard Height2120 mm

Max Travel Speed (Empty load)19 km/h

Max Lift/Lifting Speed (Full load)320 mm/s

Front Tyres250-15-16 PR —

Rear Tyres6.50-10-10 PR —

Battery12/80 V/Ah

Engine Model4TNE98 —

Engine Power43/2300 kW/rpm

Min. intersecting aisle2700 mm

Engine ManufactureYANMAR —

Engine Rated Torque177.6-196.3/1700 N·m/rpm

No. of Cylinder4 —

Bore×Stroke98 × 110 mm

Displacement3318 cc

Fuel Tank Capacity70 L

Transmission TypeHydraulic —

Transmission Stage (FWD/RVS)1/1 —

Operating Pressure for Attachment18 Mpa

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
