Key Features
The widened gantry design provides the driver with a wider field of vision. The gantry is constructed of CJ-type steel, ensuring a robust structure, high load-bearing capacity, and safe and reliable operation.
Technical data

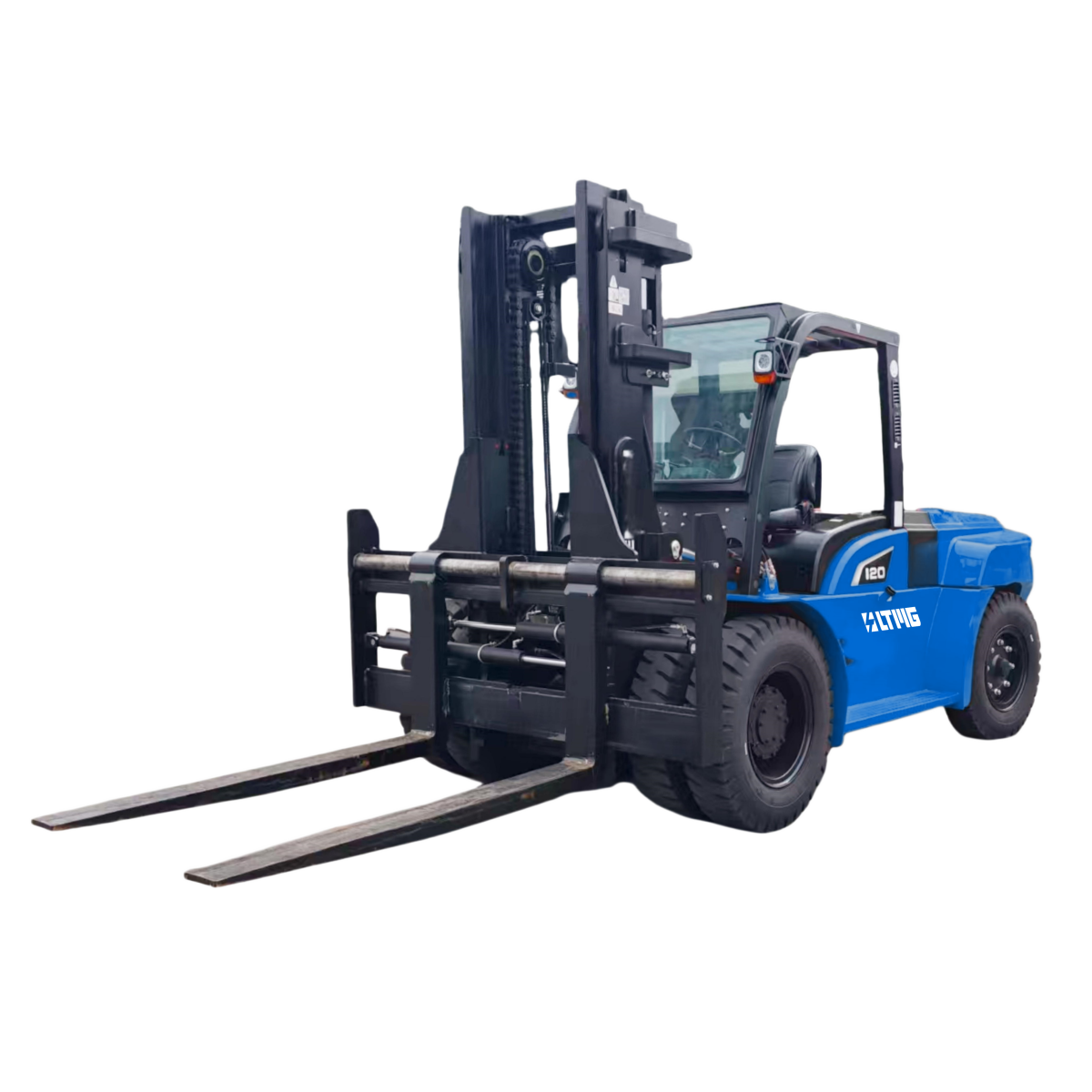

型号FD120
Power TypeDiesel —
Rated Capacity12000 kg
Load Center600 mm
Lift Height3000 mm
Fork Size1520×180×100 mm
Mast Tilt Angle (F/R)6°/12° Deg
Turning Radius4300 mm
Ground Clearance250 mm
Front Overhang740 mm
Max. Gradeability20/25 %
Wheel Base3000 mm
Overall Weight14000 kg
Total Length without Fork4540 mm
Overall/Total Width2200 mm
Mast Lowered Height2850 mm
Mast Extended Height4325 mm
Overhead Guard Height2560 mm
Max Travel Speed (Empty load)23/28 km/h
Max Lift/Lifting Speed (Full load)350/390 mm/s
Front Tyres9.00-20-14PR —
Rear Tyres9.00-20-14PR —
Battery24/100 V/Ah
Engine ModelYuchai YCA05115-T480 —
Engine Power85/2200 kW/rpm
Engine Rated Torque500/1400-1600 N·m/rpm
No. of Cylinder4 —
Displacement4.837 L
Free Lift Height195 mm
Max. Lowering Speed370/350 mm/s
Max. Traction Force70 kN
Height of Load-backrest/ mm
Front Wheel Tread1600 mm
Rear Wheel Tread1725 mm
Rear Overhang800 mm
Recommended products
Diesel Forklift

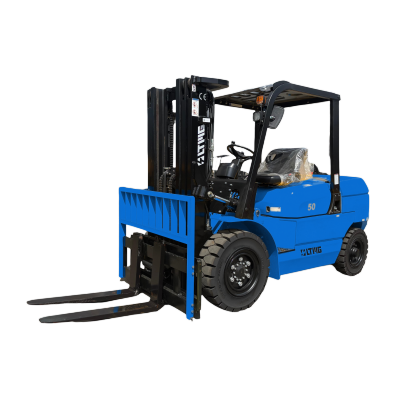

FD50
- Rated Capacity
- 5000 kg
- Load Center
- 600 mm
- Lift Height
- 3000 mm
Diesel Forklift

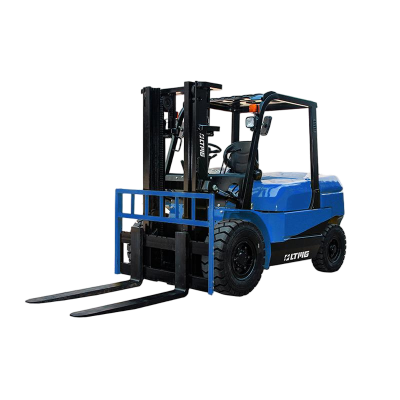

FD45
