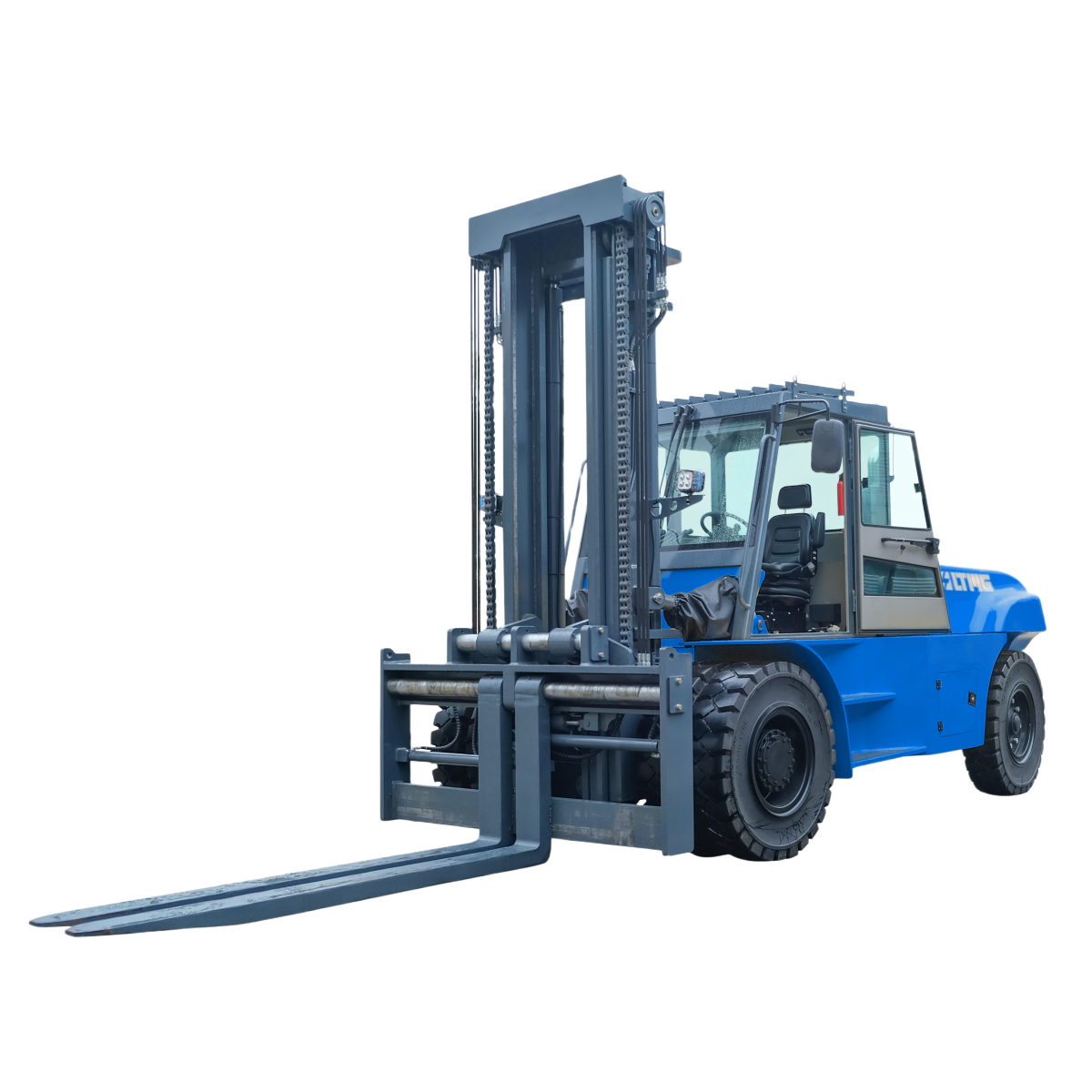

Diesel Forklift

FD160

Name: FD160 柴油叉车-FD160
Brand: LTMG

16000 kgRated Capacity

900 mmLoad Center

3500 mmLift Height

Request an inquiry

Key Features

Standard equipped OPS operator sensor system prevents accidents caused by improper driver positioning, while a waterproof wiring harness and multi-way fuse arrangement ensure superior circuit safety and stability.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

ModelFD160

Power TypeDiesel —

Rated Capacity16000 kg

Load Center900 mm

Lift Height3500 mm

Fork Size1800*200*100 mm

Mast Tilt Angle (F/R)6/12 Deg

Turning Radius5340 mm

Ground Clearance300 mm

Front Overhang920 mm

Max. Gradeability20/22 %

Wheel Base3800 mm

Overall Weight24000 kg

Total Length (without forks)5730 mm

Overall Width2750 mm

Mast Lowered Height3520 mm

Mast Extended Height5240 mm

Overhead Guard Height3210 mm

Max. Travel Speed (Full/No load)22/30 km/h

Max. Lifting Speed (Full/No load)240/300 mm/s

Front Tyres12.00-24 —

Rear Tyres12.00-20 —

Battery/ V/Ah

Engine ModelWP6G175E22 —

Engine Power129 kW

Tires Qty (Front/Rear)4/2 —

Wheel Tread (Front)2070 mm

Wheel Tread (Rear)2130 mm

Overall Length (with forks)7530 mm

Fork Carriage Width2700 mm

Wheelbase Center Min. Ground350 mm

Rear Overhang960 mm

Traction130 kN

Engine ManufacturerWeiChai —

Cylinder No.6 —

Transmission Gears (F/R)2/1 —

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
