Key Features
The engine of FD15 intake adopts a high independent channel to prevent dust inhalation and effectively increase the engine intake volume to make the engine burn more fully.
Technical data

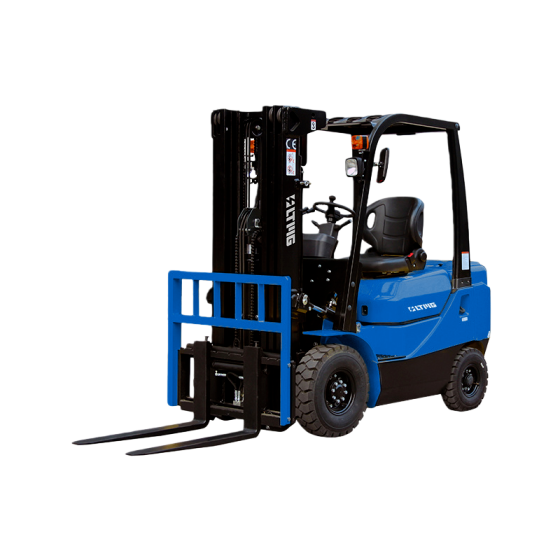

型号FD18
Power TypeDiesel —
Rated Capacity1800 kg
Load Center500 mm
Lift Height3000 mm
Fork Size920×120×35 mm
Mast Tilt Angle (F/R)46185 Deg
Turning Radius2055 mm
Ground Clearance110 mm
Front Overhang410 mm
Max. Gradeability20 %
Wheelbase1400 mm
Overall Weight3030 kg
Total Length without Fork2285 mm
Overall Width1086 mm
Mast Lowered Height1995 mm
Mast Extended Height3940 mm
Overhead Guard Height2040 mm
Max Travel Speed (Full load)15 km/h
Max Lift Speed (Full load)450 mm/s
Front Tyres6.50-10-12PR —
Rear Tyres5.00-8-10PR —
Battery12/80 V/Ah
Engine ModelC240 / NC485BPG-508 —
Engine Power35.4/2500 / 30/2600 kW/rpm
Engine ManufacturerISUZU / XINCHAI —
Max. Rated Torque137.7/1800 / 131/1700-1900 N·m/rpm
No. of Cylinder46116 —
Bore × Stroke86×102 / 85×100 mm
Displacement2369 / 2270 cc
Fuel Tank Capacity45 L
Transmission TypeHydraulic —
Transmission Stage (FWD/RVS)46023 —
Recommended products

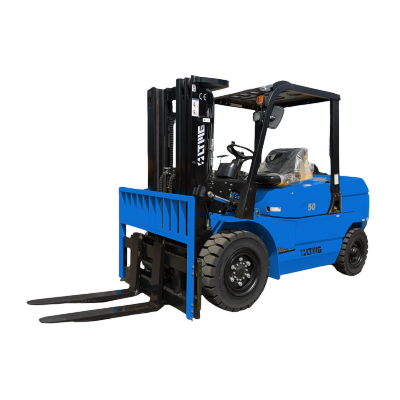

Diesel Forklift
FD50
- Rated Capacity
- 5000 kg
- Load Center
- 600 mm
- Lift Height
- 3000 mm

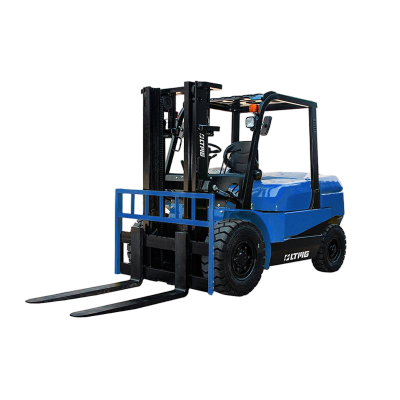

Diesel Forklift
FD45
- Rated Capacity
- 4500 kg
- Load Center
- 500 mm
- Lift Height
- 3000 mm

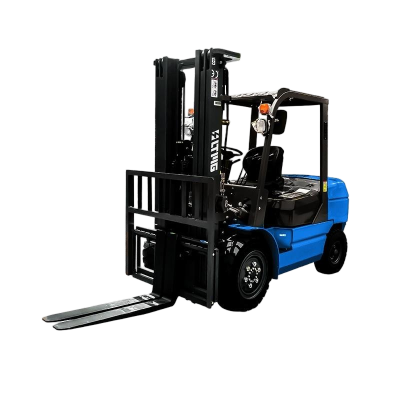

Diesel Forklift
