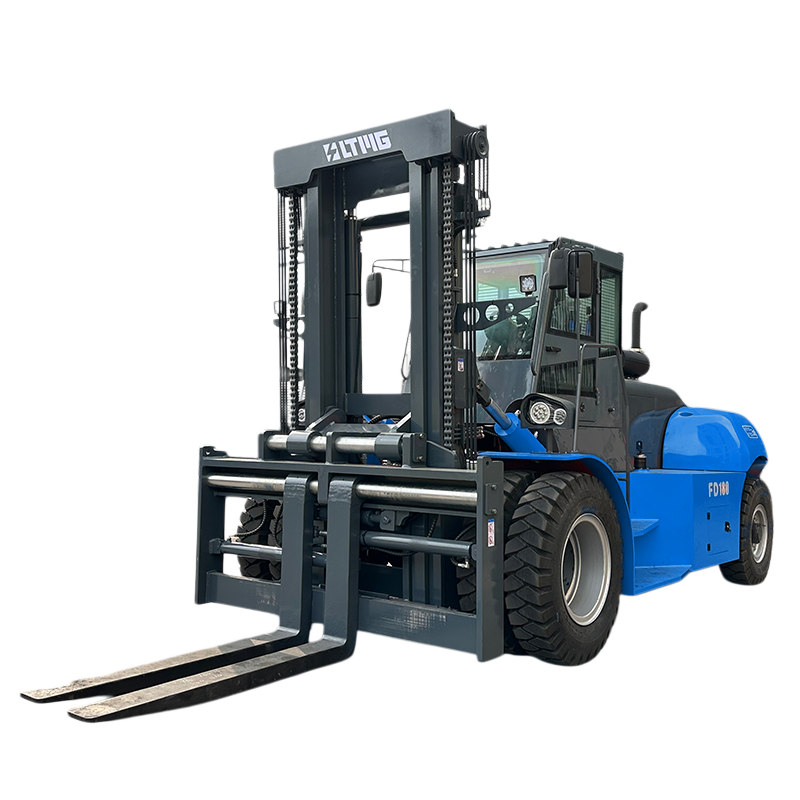

Diesel Forklift

FD180

Name: FD180 柴油叉车-FD180
Brand: LTMG

18000 kgRated Capacity

900 mmLoad Center

3500 mmLift Height

Request an inquiry

Key Features

The high-quality turbocharged engine features low oil consumption, excellent power performance, and large torque reserves, ensuring robust power delivery.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

ModelFD180

Power TypeDiesel —

Rated Capacity18000 kg

Load Center900 mm

Lift Height3500 mm

Fork Size1800*240*90 mm

Mast Tilt Angle (F/R)6/12 Deg

Turning Radius5600 mm

Ground Clearance360 mm

Front Overhang980 mm

Max. Gradeability20/22 %

Wheel Base3900 mm

Overall Weight27000 kg

Total Length (without forks)5880 mm

Overall Width2750 mm

Mast Lowered Height3520 mm

Mast Extended Height5240 mm

Overhead Guard Height3230 mm

Max. Travel Speed (Full/No load)25/30 km/h

Max. Lifting Speed (Full/No load)260/270 mm/s

Front Tyres12.00-24 —

Rear Tyres12.00-24 —

Battery/ V/Ah

Engine ModelWP6G175E22 —

Engine Power129 kW

Tires Qty (Front/Rear)4/2 —

Wheel Tread (Front)2070 mm

Wheel Tread (Rear)2130 mm

Overall Length (with forks)7680 mm

Fork Carriage Width2700 mm

Wheelbase Center Min. Ground360 mm

Rear Overhang1020 mm

Traction130 kN

Engine ManufacturerWeiChai —

Cylinder No.6 —

Transmission Gears (F/R)2/1 —

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
