Key Features
Dual-stage air purification with an iron air filter and high independent intake channel ensures complete diesel combustion to extend engine life.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

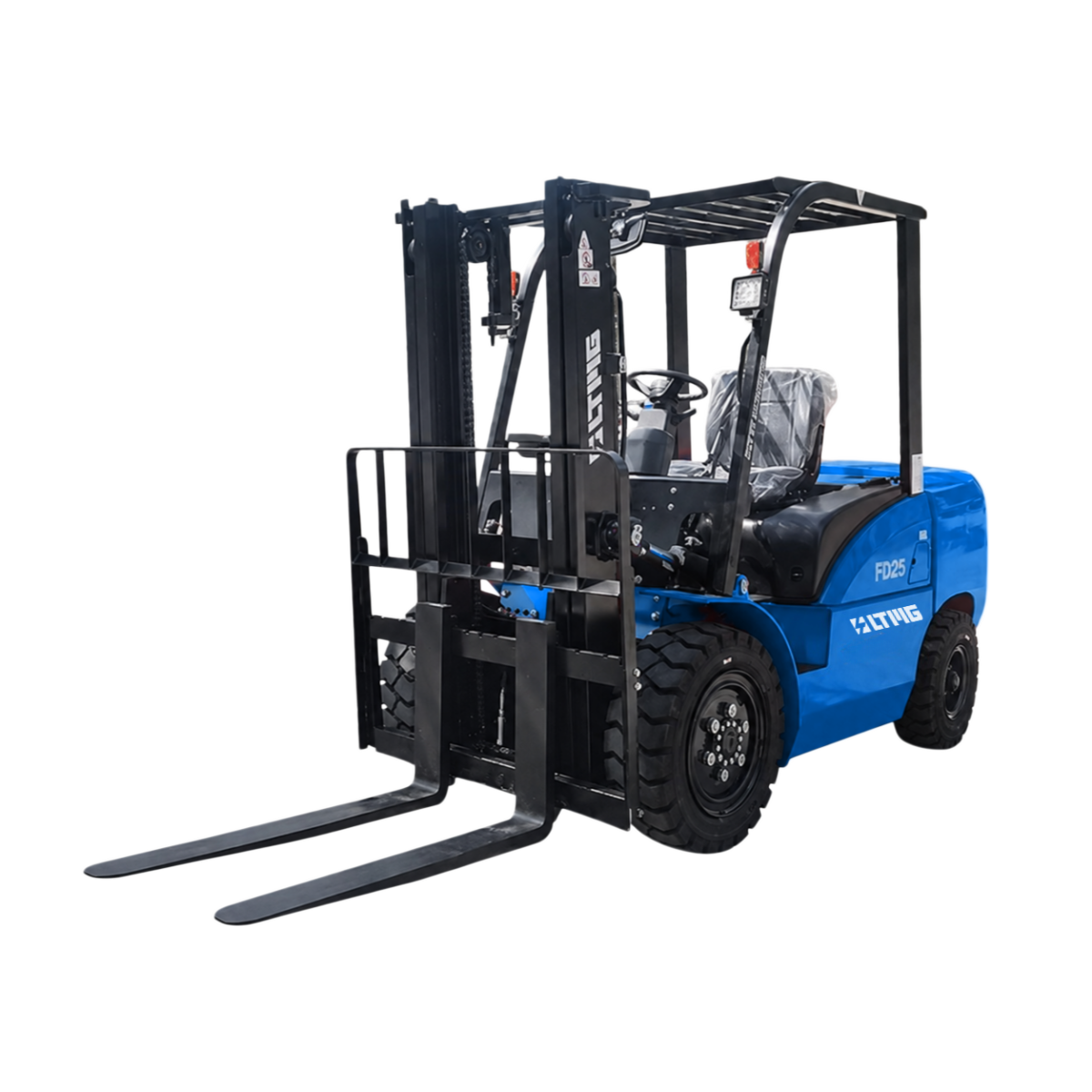

型号FD25
Rated Capacity2500 kg
Load Center500 mm
Lift Height3000 mm
Fork Size1070×120×40 mm
Mast Tilt Angle (F/R)6/12 Deg
Ground Clearance110 mm
Front Overhang462 mm
Max. Gradeability15/20 %
Wheel Base1650 mm
Overall Weight3700 kg
Total Length without Fork2520 mm
Overall/Total Width1260 mm
Mast Lowered Height2000 mm
Mast Extended Height4035 mm
Overhead Guard Height2110 mm
Max Travel Speed17/19 km/h
Max Lift/Lifting Speed560/600 mm/s
Front Tyres7.00-12-12PR —
Rear Tyres6.00-9-10PR —
Engine ModelXinchai C490BPG —
Engine Power36.8/2600 kW/rpm
Free Lift Height130 mm
Max. Traction Force (Full load)16.5 N
Wheel Tread (Front/Rear)970/980 mm
Rear Overhang408 mm
Maximum Torque147/1800 N.m/rpm
Cylinders4 —
Displacement2.54 L
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
