Key Features
Dual-stage purification via an iron air filter and high independent intake channel ensures complete diesel combustion, extending engine life.
Technical data

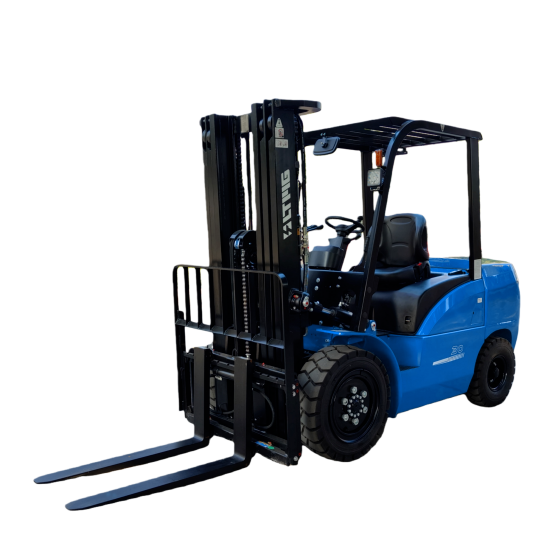

型号FD30
Rated Capacity3000 kg
Load Center500 mm
Lift Height3000 mm
Fork Size1070×122×45 mm
Mast Tilt Angle (F/R)46185 Deg
Ground Clearance130 mm
Front Overhang475 mm
Max. Gradeability15/20 %
Wheel Base1750 mm
Overall Weight4300 kg
Total Length without Fork2825 mm
Overall/Total Width1260 mm
Mast Lowered Height2130 mm
Mast Extended Height4230 mm
Overhead Guard Height2110 mm
Max Travel Speed18.5/19 km/h
Max Lift/Lifting Speed455/480 mm/s
Front Tyres28×9-15-14PR —
Rear Tyres6.50-10-10PR —
Engine ModelXinchai C490BPG —
Engine Power36.8/2600 kW/rpm
Free Lift Height130 mm
Max. Traction Force (Full load)20 N
Wheel Tread (Front/Rear)1000/970 mm
Rear Overhang600 mm
Maximum Torque147/1800 N.m/rpm
Cylinders4 —
Displacement2.54 L
