Key Features
The engine intake adopts a high independent channel to prevent dust inhalation and effectively increase the engine intake volume to make the engine burn more fully.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data

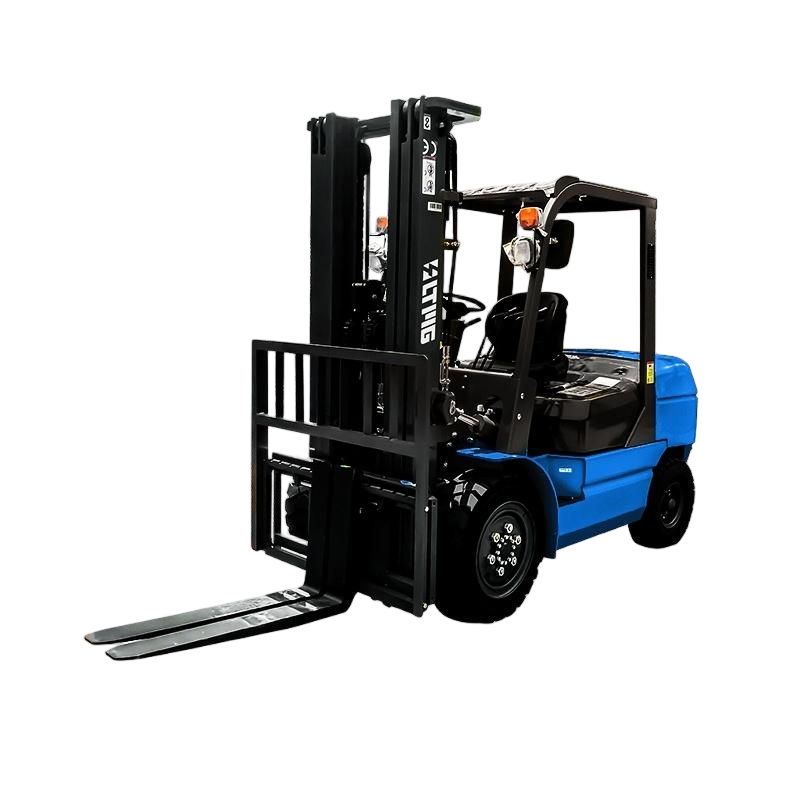

型号FD38
Power TypeDiesel —
Rated Capacity3800 kg
Load Center500 mm
Lift Height3000 mm
Fork Size1070×125×50 mm
Mast Tilt Angle (F/R)6/12 Deg
Turning Radius2570 mm
Ground Clearance140 mm
Front Overhang485 mm
Max. Gradeability20 %
Wheel Base1800 mm
Overall Weight4900 kg
Total Length without Fork2835 mm
Overall/Total Width1230 mm
Mast Lowered Height2150 mm
Mast Extended Height4175 mm
Overhead Guard Height2110 mm
Max Travel Speed (Empty load)20 km/h
Max Lift/Lifting Speed (Full load)430 mm/s
Front Tyres28×9-15-12 PR —
Rear Tyres6.50-10-10 PR —
Battery12/80 V/Ah
Engine Model4TNE98 —
Engine Power43/2300 kW/rpm
Min. intersecting aisle2650 mm
Engine ManufactureYANMAR —
Engine Rated Torque177.6-196.3/1700 N·m/rpm
No. of Cylinder4 —
Bore×Stroke98 × 110 mm
Displacement3318 cc
Fuel Tank Capacity70 L
Transmission TypeHydraulic —
Transmission Stage (FWD/RVS)1/1 —
Operating Pressure for Attachment18 Mpa
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
