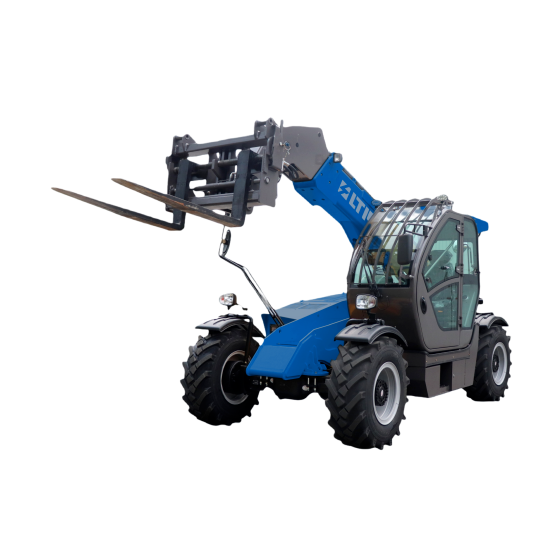

Diesel Telescopic Forklift

FT25

Name: FT25 柴油伸缩臂叉车-FT25
Brand: LTMG

2500 kgRated Capacity

5850 mmLift Height

3310 mmTurning Radius

Request an inquiry

Key Features

To meet the narrow space operation, crab mode, to meet the diagonal narrow space operation.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号FT25

Rated Capacity2500 kg

Lift Height5850 mm

Turning Radius3310 mm

Ground Clearance380 mm

Wheel Base2300 mm

Overall Weight5500 kg

Engine ModelYUNNEI/YN27GBZ -

Engine Power58 kW

Lift Capacity To Full Height2000 kg

Lift Capacity At Full Reach800 kg

Bucket Lifting Force4205 N

Reach At Max. Lift Height450 mm

Max. Forward Reach3300 mm

Tires12-16.5Tubeless Tire -

Overall Height2000 mm

Overall Width (Over Tyre)2000 mm

Inside Width Of Cab800 mm

Front Track1480 mm

Overall Length To Front Carriage3900 mm

Optional EngineEURO5 standard: CHANGCHAI (55KW) / EPA4/EURO5 standard: KOHLER KDI2504TCR(55KW) / EPA4 standard: CUMMINS QSF2.8(55KW) -

Pallet Fork Length1220 mm

Hydraulic Oil Tank115 L

Diesel Tank63 L

Transmission TypeHydraulic Torque Converter -

Steering TypeFront Wheel Steering / Four Wheel Steering / Crab Steering -

Drive Type4 wheel drive -

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
