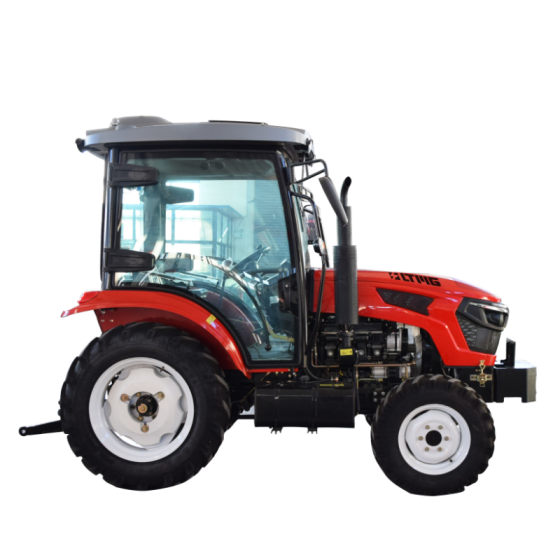

Diesel wheeled Tractor

LTB604

Name: LTB604 柴油轮式拖拉机-LTB604
Brand: LTMG

44.1 kWRated Power

2800 kgMinimum Operating Mass

12F+12R /Gearbox

Request an inquiry

Key Features

Equipped with a shuttle shift gear structure, it allows for quick transitions between forward and reverse with a single gear engagement.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTB604

Drive Type4 × 4 /

Rated Power44.1 kW

Overall Dimensions (L × W × H)3945 × 1860 × 2730 mm

Wheelbase2110 mm

Minimum Ground Clearance350 mm

Minimum Operating Mass2800 kg

Tread (Front / Rear)Front: 1400 (1000–1300), adjustable; Rear: 1400 (1000–1300), adjustable mm

Clutch TypeDry-type, double-acting /

EngineYN27GB /

Rated Speed2300 r/min

Gearbox12F+12R /

PTO Type8 spline, Φ38, Type I (optional 6 spline) /

PTO Rated Power≥37.5 kW

PTO Speed540/720 or 540/1000 r/min

Three-Point LinkageRear three-point suspension, Cat. 2 /

Hydraulic Output2-group valve /

Hydraulic Adjustment ModeForced hydraulic system, position control, floating control /

Maximum Lifting Force at Frame Center≥10.6 kN

Standard Tyre Size (Front / Rear)8.3–24 / 14.9–30 /

Optional Tyre Size I (Front / Rear)9.5–24 / 16.9–30 /

Optional Tyre Size II (Front / Rear)8.3–20 / 12.4–28 /

Other OptionsWarm cabin (optional), safety shelf (optional) /

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
