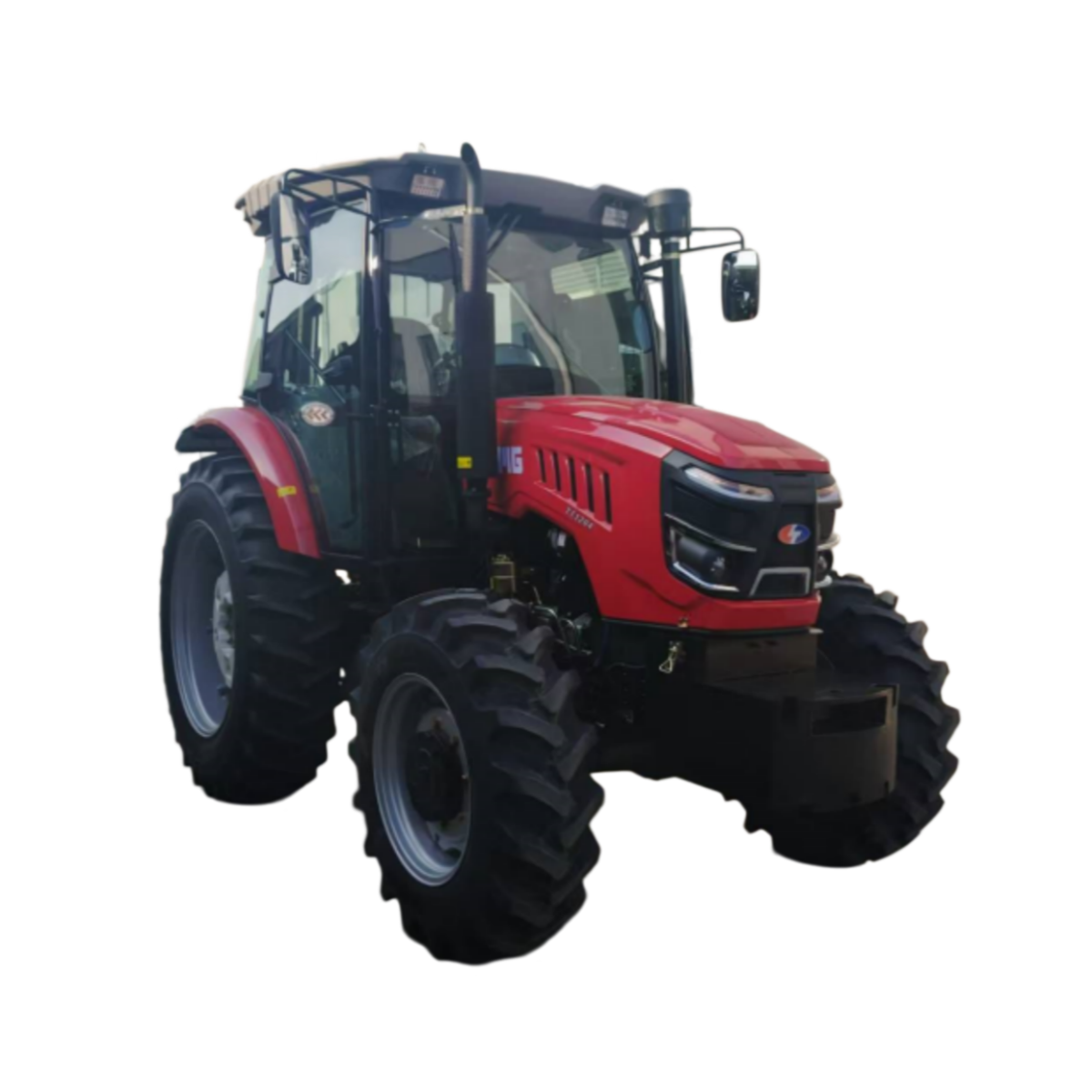

Diesel wheeled Tractor
LTD1204
88.2 kWRated Power
4660 kgMinimum Operating Mass
24F+8R (optional 16F+8R) /Gearbox
Key Features
Equipped with a shuttle shift gear structure, it allows for quick transitions between forward and reverse with a single gear engagement.
Technical data
型号LTD1204
Drive Type4 × 4 /
Rated Power88.2 kW
Overall Dimensions (L × W × H)4750 × 2100 × 3060 mm
Wheelbase2600 mm
Minimum Ground Clearance420 mm
Minimum Operating Mass4660 kg
Tread (Front / Rear)Front: 1620 (1620–1820), adjustable; Rear: 1620 (1620–1820), adjustable mm
Clutch TypeDry-type, double-acting /
EngineYTO 6 cylinder /
Rated Speed2200 r/min
Gearbox24F+8R (optional 16F+8R) /
PTO Type8 spline, Φ38, Type I (optional 6 spline) /
PTO Rated Power≥75 kW
PTO Speed760/1000 or 760/850 or 540/1000 r/min
Three-Point LinkageRear three-point suspension, Cat. 2 /
Hydraulic Output3-group valve /
Hydraulic Adjustment ModeForced hydraulic system, position control, floating control /
Maximum Lifting Force at Frame Center≥21.2 kN
Standard Tyre Size (Front / Rear)12.4–24 / 16.9–34 /
Optional Tyre Size I (Front / Rear)13.6–24 / 16.9–38 /
Other OptionsCabin, air brake, ROP, sunroof /
