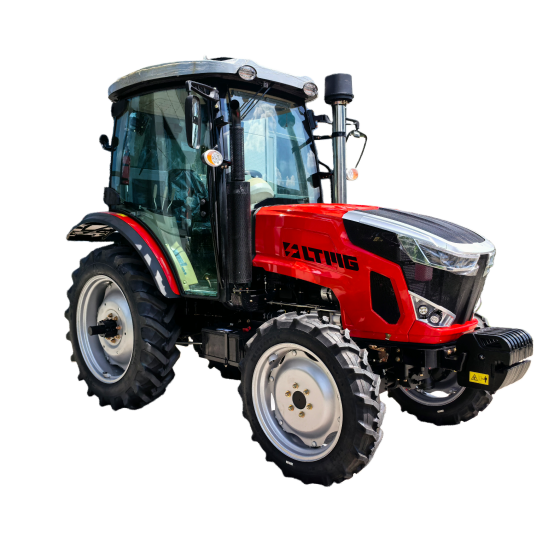

Diesel wheeled Tractor

LTB904

Name: LTB904 柴油轮式拖拉机-LTB904
Brand: LTMG

66.15 kWRated Power

3020 kgMinimum Operating Mass

12F+12R /Gearbox

Request an inquiry

Key Features

Equipped with a 12F+12R shuttle shifter and dual-acting clutch, enabling convenient gear shifting and suitable speed matching for various agricultural operations.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTB904

Drive Type4 × 4 /

Rated Power66.15 kW

Overall Dimensions (L × W × H)4050 × 1830 × 2660 mm

Wheelbase2110 mm

Minimum Ground Clearance390 mm

Minimum Operating Mass3020 kg

Tread (Front / Rear)1300–1400 mm

Chassis TypeTB /

EngineYangdong, inline, direct injection, water cooled, turbocharged, China Emission Stage II /

Rated Speed2400 r/min

Clutch TypeDry type, double-acting, synchronizer shifting /

Gearbox12F+12R /

PTO Type6 spline /

PTO Speed540/1000 r/min

Three-Point LinkageThree-point linkage, CAT II /

Hydraulic Output2-group valve (optional 3-group) /

Maximum Traction Force≥22.1 kN

Maximum Lifting Force at Frame Center≥16 kN

Steering SystemHydraulic steering /

Brake TypeOil-immersed /

Standard Tyre Size (Front / Rear)9.5–24 / 14.9–30 /

Optional Tyre Size I (Front / Rear)8.3–24 / 16.9–30 /

Optional Tyre Size II (Front / Rear)12.4–24 / 18.4–30 /

Optional Tyre Size III (Front / Rear)280/85R20 / 380/85R30 (radial) /

Theoretical SpeedForward: 2.46–32.73; Reverse: 2.15–28.69 km/h

Fuel Tank Capacity70 L

Other OptionsROPS, canopy, cabin with air conditioner, air compressor /

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
