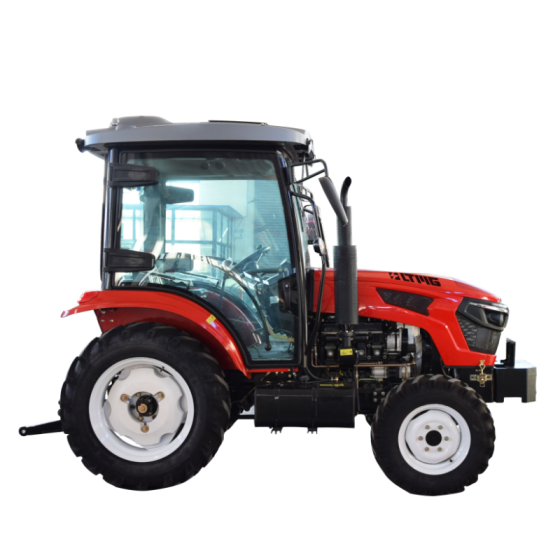

Diesel wheeled Tractor
LTB504
36.8 kWRated Power
2680 kgMinimum Operating Mass
12F+12R /Gearbox
Key Features
Equipped with a shuttle shift gear structure, it allows for quick transitions between forward and reverse with a single gear engagement.
Technical data
型号LTB504
Drive Type4 × 4 /
Rated Power36.8 kW
Overall Dimensions (L × W × H)3945 × 1860 × 2730 mm
Wheelbase2110 mm
Minimum Ground Clearance350 mm
Minimum Operating Mass2680 kg
Tread (Front / Rear)Front: 1400 (1000–1300), adjustable; Rear: 1400 (1000–1300), adjustable mm
Clutch TypeDry-type, double-acting /
EngineYunnei, 4 cylinder (Tier IV) /
Rated Speed2400 r/min
Gearbox12F+12R /
PTO Type8 spline, Φ38, Type I (optional 6 spline) /
PTO Rated Power≥31.3 kW
PTO Speed540/720 or 540/1000 r/min
Three-Point LinkageRear three-point suspension, Cat. 2 /
Hydraulic Output2-group valve (optional 3-group) /
Hydraulic Adjustment ModeForced hydraulic system, position control, floating control /
Maximum Lifting Force at Frame Center≥8.9 kN
Standard Tyre Size (Front / Rear)8.3–24 / 14.9–30 /
Optional Tyre Size I (Front / Rear)9.5–24 / 16.9–30 /
Optional Tyre Size II (Front / Rear)8.3–20 / 12.4–28 /
Other OptionsWarm cabin (optional), safety shelf (optional) /
Recommended products
Diesel wheeled Tractor
LTD904
- Rated Power
- 66.2 kW
- Minimum Operating Mass
- 4560 kg
- Gearbox
- 16F+8R /
Diesel wheeled Tractor
LTB904
- Rated Power
- 66.15 kW
- Minimum Operating Mass
- 3020 kg
- Gearbox
- 12F+12R /
Diesel wheeled Tractor
LTB604
- Rated Power
- 44.1 kW
- Minimum Operating Mass
- 2800 kg
- Gearbox
- 12F+12R /

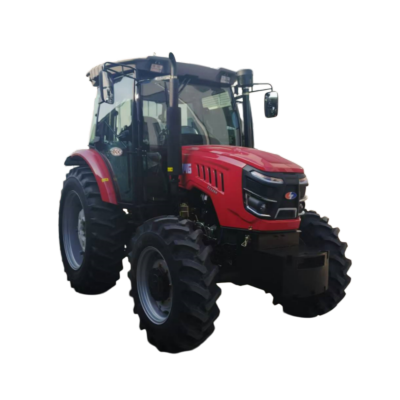

Diesel wheeled Tractor
