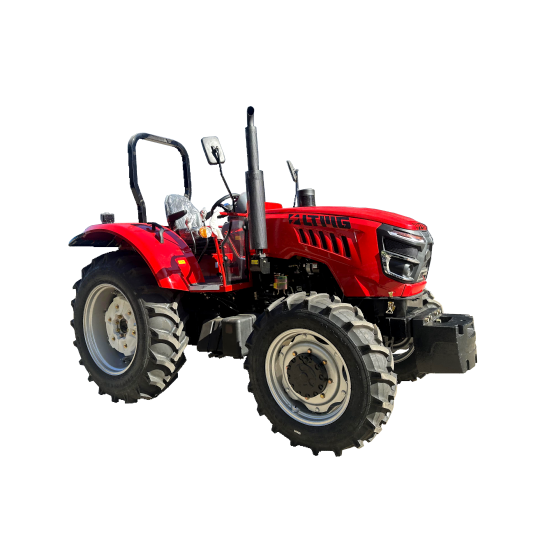

Diesel wheeled Tractor
LTD1004
74 kWRated Power
4560 kgMinimum Operating Mass
16F+8R /Gearbox
Key Features
Equipped with a shuttle shift gear structure, it allows for quick transitions between forward and reverse with a single gear engagement.
Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.
Technical data
型号LTD1004
Drive Type4 × 4 /
Rated Power74 kW
Overall Dimensions (L × W × H)4485 × 2100 × 3060 mm
Wheelbase2385 mm
Minimum Ground Clearance420 mm
Minimum Operating Mass4560 kg
Tread (Front / Rear)Front: 1620 (1620–1820), adjustable; Rear: 1620 (1620–1820), adjustable mm
Clutch TypeDry-type, double-acting /
EngineLR4V5P-T145-U2 /
Rated Speed2300 r/min
Gearbox16F+8R /
PTO Type8 spline, Φ38, Type I (optional 6 spline) /
PTO Rated Power≥63 kW
PTO Speed760/1000 or 760/850 or 540/1000 r/min
Three-Point LinkageRear three-point suspension, Cat. 2 /
Hydraulic Output3-way valve /
Other OptionsROPS, sunroof /
Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
