Diesel wheeled Tractor

LTD1604

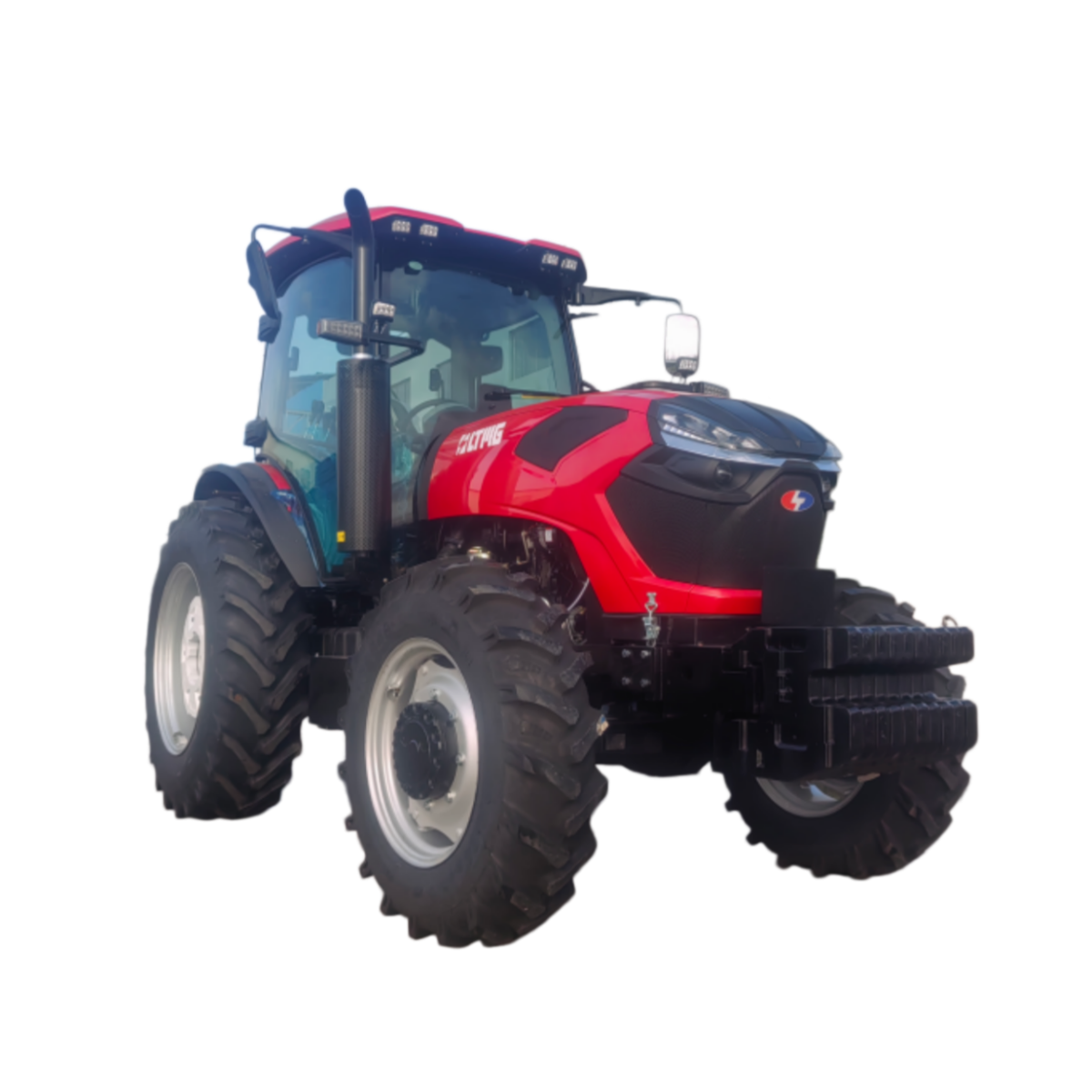

Name: LTD1604 柴油轮式拖拉机-LTD1604
Brand: LTMG

117.7 kWRated Power

4660 kgMinimum Operating Mass

24F+8R (optional 16F+8R) /Gearbox

Request an inquiry

Key Features

Equipped with a shuttle shift gear structure, it allows for quick transitions between forward and reverse with a single gear engagement.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTD1604

Drive Type4 × 4 /

Rated Power117.7 kW

Overall Dimensions (L × W × H)4750 × 2100 × 3060 mm

Wheelbase2600 mm

Minimum Ground Clearance420 mm

Minimum Operating Mass4660 kg

Tread (Front / Rear)Front: 1620 (1620–1820), adjustable; Rear: 1620 (1620–1820), adjustable mm

Clutch TypeDry-type, double-acting /

EngineYTO 6 cylinder /

Rated Speed2200 r/min

Gearbox24F+8R (optional 16F+8R) /

PTO Type8 spline, Φ38, Type I (optional 6 spline) /

PTO Rated Power≥100.3 kW

PTO Speed760/1000 or 760/850 or 540/1000 r/min

Three-Point LinkageRear three-point suspension, Cat. 2 /

Hydraulic Output3-group valve /

Hydraulic Adjustment ModeForced hydraulic system, position control, floating control /

Maximum Lifting Force at Frame Center≥28.3 kN

Standard Tyre Size (Front / Rear)12.4–24 / 16.9–34 /

Optional Tyre Size I (Front / Rear)13.6–24 / 16.9–38 /

Other OptionsCabin, air brake, ROP, sunroof /

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
