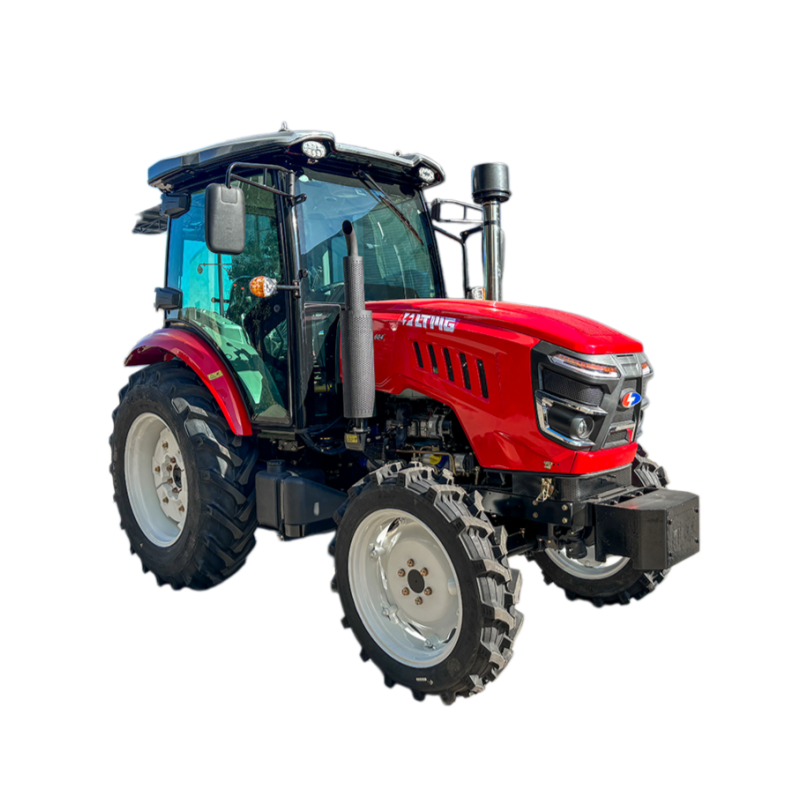

Diesel wheeled Tractor

LTE604

Name: LTE604 柴油轮式拖拉机-LTE604
Brand: LTMG

44.1 kWRated Power

1780 kgMinimum Operating Mass

TE 8F+2R (optional 8F+8R) /Gearbox

Request an inquiry

Key Features

Equipped with a shuttle shift gear structure, it allows for quick transitions between forward and reverse with a single gear engagement.

Some of the product features listed above involve optional configurations. Please confirm the specific configuration with our international sales team.

Technical data

型号LTE604

Drive Type4 × 4 /

Rated Power44.1 kW

Overall Dimensions (L × W × H)3630 × 1550 × 2370 mm

Wheelbase1860 mm

Minimum Ground Clearance355 mm

Minimum Operating Mass1780 kg

Tread (Front / Rear)Front: 1200 (1000–1500), adjustable; Rear: 1200 (1000–1500), adjustable mm

Clutch TypeDry-type, single-acting (optional double-acting) /

Engine4 cylinder /

Rated Speed2400 r/min

GearboxTE 8F+2R (optional 8F+8R) /

PTO Type6 spline, Φ35, Type I /

PTO Rated Power≥37.5 kW

PTO Speed540/720 r/min

Three-Point LinkageRear three-point suspension, Cat. 1 /

Hydraulic Output1-group valve (optional 2-group valve) /

Hydraulic Adjustment ModeForced hydraulic system, position control, floating control /

Maximum Lifting Force at Frame Center≥10.6 kN

Standard Tyre Size (Front / Rear)7.50–16 / 11.2–28 /

Optional Tyre Size I (Front / Rear)7.50–20 / 12.4–28 /

Other OptionsCabin, air brake, ROP, sunroof /

Optional Tyre Size II (Front / Rear)6.50–16 / 11.2–24 /

Due to continuous technological innovation, product configurations and technical parameters are subject to change without prior notice. All specifications and configurations are for reference only. In case of any doubt, please confirm with our international trade sales team. The formal signed business contract shall prevail.
